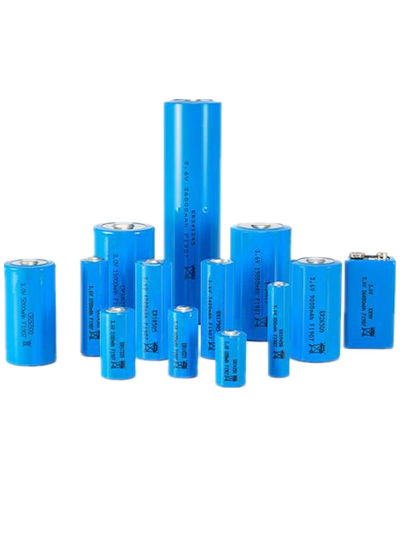

Lithium Thionyl Chloride Batteries
ENERGY/Bobbin Type & POWER/Spiral Type
High energy density (620Wh/Kg); |
|
High operating voltage and stable: 3.6V; |
|
Wide range of operating temperature(-55°C~+85°C); |
|
Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage; |
|
Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature). |
ETC (Electronic Toll Collection System); |
|
Water Meter, Gas Meter and other Smart Meter; |
|
GPS, Monitor Devices, Tracking Devices; |
|
Smart City, Smart Home devices; |
|
Alarm and Security Systems, Military Instruments. |
Li-SOCI2 BATTERY
The above data is for reference only,Customized design is available.
ENERGY TYPE
Model
Size
Nominal Voltage
Nominal Capacity
Standard Discharge
Max.Discharge Current(mA)
Diameter
Height
Approx. Weight (g)
(V)
(mAh)
Current(mA)
Continuous
Pulse
(mm)
(mm)
ER10250
–
3.6
400
0.5
5
10
10.4
25
4
ER10450
AAA
3.6
800
0.5
25
60
10.6
45
9
ER13150
–
3.6
450
0.5
10
20
13.5
15.7
7
ER13170
–
3.6
500
0.5
10
20
13.5
17.8
7
ER14250
1/2AA
3.6
1200
0.5
20
50
14.5
25.2
11
ER14335
2/3AA
3.6
1650
1.3
30
70
14.5
33.5
13
ER14505
AA
3.6
2600
1
50
100
14.5
50.5
19
ER17335
2/3A
3.6
2100
1
50
100
17
33.5
18
ER17505
A
3.6
3600
1
70
150
17
50.5
24
ER18505
–
3.6
4100
2
80
150
18.5
50.5
29
ER20505
–
3.6
4400
1.2
120
250
20
50.5
35
ER26500
C
3.6
9000
3
100
200
26
50
53
ER34615
D
3.6
19000
3
150
300
34
61.5
105
ER341245
DD
3.6
35000
2
200
400
34.2
124.5
200
ER9V
–
10.8
1200
0.5
40
80
16.9*26.3*48.6
40
POWER TYPE
Model
Size
Nominal Voltage
Nominal Capacity
Standard Discharge
Max.Discharge Current(mA)
Diameter
Height
Approx. Weight (g)
(V)
(mAh)
Current(mA)
Continuous
Pulse
(mm)
(mm)
ER14250M
1/2AA
3.6
750
4
120
250
14.5
25.2
11
ER14335M
2/3AA
3.6
1200
4
300
500
14.5
33.5
13
ER14505M
AA
3.6
1800
10
500
1000
14.5
50.5
22
ER17335M
2/3A
3.6
1700
10
500
1000
17
33.5
21
ER18505M
–
3.6
3200
10
1000
2000
18.5
50.5
30
ER20505M
–
3.6
3600
10
1000
2000
20
50.5
35
ER26500M
C
3.6
6500
10
1000
2000
26
50
57
ER34615M
D
3.6
14500
10
2000
3000
34
61.5
118
HiGH TEMPERATURE TYPE
Model
Size
Nominal Voltage
Nominal Capacity
Standard Discharge
Max.Discharge Current(mA)
Diameter
Height
Approx. Weight(g)
(V)
(mAh)
Current(mA)
Continuous
Pulse
(mm)
(mm)
ER14250S
1/2AA
3.6
600
50
50
100
14.65
25.2
10
ER14505S
AA
3.6
1800
50
100
200
14.65
50.5
20
ER17335S
2/3A
3.6
1200
-
80
-
17
33.5
19
ER26500S
C
3.6
5500
50
150
300
26.2
50
55
ER34615S
D
3.6
12000
100
170
350
33.2
61.5
108
ER341245S
DD
3.6
25000
200
400
800
33.2
124.5
220
