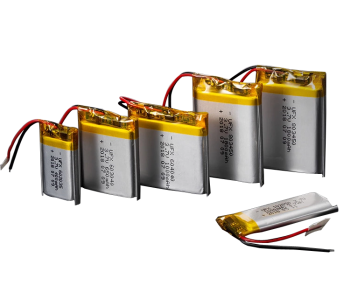

Li-Polymer Battery

Standard Type & High Rate & High/Low Temperature Type





FEATURES:

High energy density and operating voltage of 3.7V;


Customize battery shape and size, small size with high capacity；

High discharge rate for powerful electronic devices;

Long cycle life and excellent cost performance;

Environmentally friendly.

APPLICATION:

Bluetooth and Wireless devices, Wearable devices, MP3/MP4/MP5;


GPS, Monitor devices;

Tablet PC, Portable DVD,PDA, Digital Cameras, Telephones, E-book, Power Bank；

Smart Home devices;

RC Toys.

Li-PO BATTERY

STANDARD TYPE
Model Nominal Voltage (V) Nominal Capacity (mAh) Internal Impedance (mΩ) Thickness (mm) Width (mm) Height (mm) Weight (g)
LP203040 3.7 210 180 2.5 36 40.5 5
LP251035 3.7 55 180 2.8 10.8 35.5 1.4
LP251235 3.7 70 180 2.7 12.5 35.5 2
LP251419 3.7 35 180 2.5 14.5 19.5 1.5
LP255570 3.7 1000 180 2.5 55 70 16
LP264343 3.7 450 180 2.6 43 43 12
LP283040 3.7 280 200 2.8 30 40 6
LP301020 3.7 30 180 3.2 11 20.8 1
LP301030 3.7 60 180 3.1 10.8 30.5 1.8
LP301215 3.7 25 180 3.2 12.5 15.5 1
LP301220 3.7 40 180 3.1 12.5 21 1.5
LP301730 3.7 120 180 3 17.5 30.5 3
LP301745 3.7 200 180 3 17 45 5
LP302023 3.7 80 180 3 20.5 23.5 2
LP302025 3.7 100 180 3 20.5 25.5 2.5
LP302030 3.7 120 700 3 20 30 2.5
LP302323 3.7 130 180 3.2 23.5 23.5 2
LP303035 3.7 280 200 3 30 35 3
LP303040 3.7 330 180 3.2 30.5 40.5 7
LP303241 3.7 340 180 3 32 41 8
LP303448 3.7 500 180 3.2 34.5 48.5 11
LP303450 3.7 500 180 3.2 34.5 50.5 11
LP304045 3.7 500 180 3 40 45 12
LP304360 3.7 700 180 3 43.5 60.5 15.3
LP331020 3.7 40 180 3.4 11 20.5 1.2
LP331030 3.7 70 180 3.4 10.8 30.5 2.5
LP351020 3.7 45 180 3.6 10.5 21 1.3
LP351489 3.7 400 180 3.5 14 89 10
LP352025 3.7 130 180 3.7 20.5 25.5 3
LP352030 3.7 160 180 3.5 20.5 30.5 4
LP353030 3.7 250 180 3.5 30.5 30.5 6
LP353040 3.7 350 180 3.5 30.5 40.5 7.5
LP353048 3.7 1080 180 3.7 30.5 48.5 18
LP353445 3.7 470 180 3.4 34.5 45.5 9.8
LP354069 3.7 900 180 3.6 40.5 69.5 20.5
LP362323 3.7 165 180 3.8 23.5 23.5 5
LP371025 3.7 50 180 3.7 10 25 2
LP374455 3.7 1000 180 3.9 44.5 55.5 15.5
LP381030 3.7 70 180 3.8 10.5 30.5 2.5
LP381223 3.7 65 180 3.8 12.5 23.5 1.7
LP382030 3.7 170 180 3.9 20.5 30.5 4.3
LP383450 3.7 650 180 3.8 34.5 50.5 13.5
LP384052 3.7 820 180 3.8 40.5 42.5 12
LP401015 3.7 45 500 4 10 15 2
LP401020 3.7 55 180 4.2 10.5 20.5 1.4
LP401030 3.7 80 180 3.8 10.8 30.5 2
LP401215 3.7 35 180 4 12.5 15.5 1.1
LP401220 3.7 65 180 4.2 12.5 21 1.6
LP401225 3.7V 90 180 4.2 12.5 25.5 2.2
LP401230 3.7 100 180 4 12.5 30.5 2.5
LP401235 3.7 120 180 4 12.5 35.5 3
LP401421 3.7 80 180 4.1 14 22 2
LP401422 3.7 1900 180 4 14.5 22.5 2
LP401430 3.7 100 180 4.2 14.5 30.5 3
LP401515 3.7 48 180 4.2 15.5 15.5 1.5
LP401730 3.7 160 200 4 17 30 6
LP402020 3.7 100 180 4.2 20.5 20.5 2.5
LP402023 3.7 125 180 4.2 20.5 23.5 3.5
LP402025 3.7 140 180 4.2 20.5 25.5 3
LP402030 3.7 180 200 4 20 30 6.5
LP402035 3.7 240 180 4.2 20.5 35.5 6.3
LP402040 3.7 280 180 4 20.5 40.5 5.5
LP402525 3.7 200 180 4 25.5 25.5 10
LP402530 3.7 250 180 4.2 25.5 30.5 6
LP403035 3.7 380 180 4.2 30.5 35.5 8
LP403040 3.7 450 180 4 30 40 12.5
LP403048 3.7 500 180 4 30 48 12
LP403442 3.7 560 180 4.2 34.5 42.5 11
LP403759 3.7 850 180 4 37.5 59.5 18
LP404355 3.7 950 180 4 43 55.5 19
LP407595 3.7 2850 180 4 75.5 95.5 51.5
LP407696 3.7 3300 180 4 76 96.5 50
LP422025 3.7 150 180 4.2 20.5 25.5 3.3
LP422746 3.7 220 300 4.2 27 26 6
LP423040 3.7 450 180 4.4 30.5 40.5 10
LP424545 3.7 730 180 4.2 45 45 16
LP425068 3.7 1550 180 4.2 50.5 68 29.5
LP431030 3.7 90 180 4.6 10.8 30.5 2
LP435085 3.7 2000 180 4.4 50.5 85.5 38
LP441033 3.7 120 180 4.4 10.8 33.5 2.5
LP443441 3.7 520 180 4.4 34 41 10
LP451124 3.7 85 180 4.5 11.5 24.5 2
LP451215 3.7 40 180 4.5 12.5 15.5 1.2
LP451220 3.7 70 180 4.5 12.5 21 1.4
LP451225 3.7 100 180 4.6 12.5 25.5 2.4
LP451230 3.7 125 180 4.46 12.5 30.5 2.5
LP451430 3.7 150 180 4.6 14.5 30.5 4
LP451530 3.7 160 200 4.5 15 30 4
LP451635 3.7 200 180 4.5 16.5 35.5 4.5
LP451730 3.7 180 180 4 20.5 30.5 4.5
LP452023 3.7 150 180 4.5 20.5 23.5 3.5
LP452040 3.7 320 180 4.7 20.5 40.5 7.3
LP452530 3.7 280 180 4.5 25.5 30.5 6.5
LP453030 3.7 360 180 4.7 30.5 30.5 8
LP453048 3.7 600 180 4.5 30.5 48.5 10.5
LP453442 3.7 650 180 6.5 34 42 20
LP453450 3.7 820 180 4.6 34.5 50.5 16.5
LP454169 3.7 1300 180 4.5 41.5 69.5 25.5
LP455085 3.7 2100 180 4.7 50.5 85.5 40
LP464872 3.7 1800 180 4.7 48 72 34.5
LP473450 3.7 850 180 4.7 34.5 50.5 17
LP481220 3.7 80 180 5 12.5 20.8 2
LP486478 3.7 2500 180 5 64.5 78.5 48.5
LP487390 3.7 3650 180 5 73.8 90 64.5
LP500919 3.7 45 500 5 9 19 2
LP501215 3.7 45 180 5 12.5 15.5 1.5
LP501230 3.7 130 180 5 12.5 30 3
LP501235 3.7 170 200 5 12 35 5
LP501240 3.7 170 180 5.2 12.3 40.5 4
LP501245 3.7 200 180 5 12.5 45.5 4.5
LP501250 3.7 260 300 5 12 50 7.5
LP501417 3.7 900 180 5.2 14.5 17.5 18
LP501430 3.7 170 180 5.2 14.5 30.5 4
LP501447 3.7 50 500 5 14 47 2
LP501530 3.7 180 250 5 15 30 6
LP501630 3.7 200 180 5.2 16.5 30.5 4
LP502020 3.7 150 180 5.2 20.5 20.5 3.5
LP502025 3.7 180 180 5 20.5 25.5 6
LP502030 3.7 250 200 5 20 30 5.5
LP502035 3.7 300 200 5 20 35 7.3
LP502040 3.7 370 180 5.2 20.5 40.5 8
LP502325 3.7 250 180 5.2 23.5 25.5 5.8
LP502333 3.7 400 180 5 23 33 9
LP502530 3.7 330 180 5.2 25.5 30.5 7
LP502530 3.7 400 180 5 25 30 10
LP502535 3.7 400 180 5 25 35 10
LP502759 3.7 1250 180 5 37.5 59.5 23.5
LP503030 3.7 400 180 5 30 30 10
LP503035 3.7 500 180 5 30 35 11
LP503040 3.7 650 180 5 30 40 21
LP503048 3.7 750 180 5.2 30.5 48.5 14
LP503060 3.74 900 180 5 30.5 60.5 22.5
LP503442 3.7 750 180 5.2 34.5 42.5 14.5
LP503450 3.7 950 180 5 34 50 30
LP503480 3.7 1450 180 5 34 80 30
LP503759 3.7 1200 180 5 37 59 24
LP504052 3.7 1100 180 5.2 40.5 52.5 22.5
LP504068 3.7 1450 180 5 40.3 69.5 29
LP504965 3.7 1800 180 5 49 65 34
LP505068 3.7 1850 180 5 50 68 34
LP523448 3.7 800 180 5.2 34.5 48.5 18.5
LP525085 3.7 2600 180 5.5 50.5 85.5 48.5
LP535056 3.7 1500 180 5.3 50.5 56.5 33
LP541112 3.7 45 500 5.4 11 12 2
LP541124 3.7 95 180 5.4 11.5 24.5 3
LP545085 3.7 2700 180 5.6 50.5 85.5 49.5
LP551235 3.7 180 180 5.7 12.5 35.5 4
LP551730 3.7 250 200 5.7 17.5 30.5 5.5
LP552535 3.7 480 180 5.4 25.5 34.5 9
LP553040 3.7 630 180 5.7 30.5 40.8 12
LP553442 3.7 800 180 5.6 34.5 42.5 16
LP553450 3.7 1000 180 5.5 34.4 50 19
LP553460 3.7 1550 200 5.5 34 60 22
LP555068 3.7 2000 180 5.5 50.5 68.5 38
LP573442 3.7 820 180 5.7 33.5 42.5 16
LP581730 3.7 220 180 5.8 17 30 8
LP582030 3.7 300 180 6 20.5 30.5 6.5
LP585158 3.7 1950 180 5.8 51.5 58 36
LP601230 3.7 160 180 6 12 30 6
LP601730 3.7 300 200 6 17 30 8
LP602020 3.7 180 180 6 20.5 21.5 4
LP602025 3.7 240 180 6.2 20.5 25.5 5.5
LP602040 3.7 420 180 6 20 40 11
LP602248 3.7 560 180 6 22 48 14
LP602525 3.7 300 180 6.2 25.5 25.8 6
LP602530 3.7 450 180 6.2 25.5 30.5 9
LP602535 3.7 550 180 6 25 35 12
LP603030 3.7 520 180 6.2 30.5 30.8 9
LP603035 3.7 600 180 6.2 30.5 30.8 12
LP603040 3.7 650 180 6.5 30.5 40.8 12.5
LP603045 3.7 850 180 6.2 30.5 45.8 17
LP603048 3.7 850 180 6.3 30.5 48.5 14.5
LP603442 3.7 800 200 6 34 42 12
LP603445 3.7 1000 180 6.2 34.5 45.5 20.5
LP603450 3.7 1200 180 6 34 50 19
LP603746 3.7 1200 180 6 37 42 24
LP603759 3.7 1500 180 6.4 37.5 59.8 27
LP604050 3.7 1350 180 6 40 50 25
LP604167 3.7 1800 180 6.2 41 67 39.5
LP604699 3.7 2850 180 6 46.5 99 54
LP614041 3.7 1050 180 6.3 40.5 41 17.5
LP621485 3.7 700 180 6.2 14 85 26
LP623042 3.7 700 180 6.2 30 42 23
LP631635 3.7 300 180 6.3 16.5 35.5 6
LP634169 3.7 2050 180 6.5 41.5 69.5 38.5
LP652020 3.7 200 200 6.5 20 20 5
LP652023 3.7 1000 180 6.6 20.5 23.5 5.3
LP652040 3.7 450 180 6.5 20.5 40.5 9
LP652530 3.7 400 180 6.5 25.5 30.5 8.5
LP653040 3.7 750 180 6.5 30.5 40.8 14
LP653442 3.7 900 180 6.5 34.5 42.5 17
LP653450 3.7 1200 180 6.7 34.5 50.5 22.5
LP654169 3.7 2000 180 6.5 41.5 69.5 38
LP654860 3.7 2000 180 6.5 48.5 60.5 24
LP661515 3.7 85 180 6.6 15 15 2.5
LP676091 3.7 4000 180 6.7 60.5 91.5 73
LP683030 3.7 590 180 6.8 30.5 30.8 11
LP684355 3.7 1750 180 6.8 43.5 55.8 34
LP685085 3.7 3000 180 6.8 50.5 85.5 58
LP701240 3.7 260 180 6.6 12.5 40.5 6
LP702020 3.7 200 180 7 20.5 20.8 4.5
LP702030 3.7 360 180 7 20.5 30.5 7.5
LP702040 3.7 480 180 7 20.5 40.5 9.5
LP703048 3.7 1020 180 6.6 30.5 48.5 15
LP703060 3.7 1400 180 7 30.5 60.5 27.5
LP703442 3.7 1100 180 7.2 34.5 42.5 18
LP703944 3.7 1350 180 7.1 39.8 44.5 20.5
LP704763 3.7 2300 180 7.2 47.5 63.8 45
LP705085 3.7 3400 180 7.2 50.5 85.5 57.5
LP723860 3.7 1800 180 7.5 38.5 60.5 33
LP743045 3.7 1020 180 7.4 30.5 45.8 15
LP743048 3.7 1100 180 7.4 30.5 48.8 35
LP753030 3.7 650 200 7.5 30 30 12
LP753445 3.7 1100 180 7.5 34.8 45.8 21.5
LP776091 3.7 5000 180 8 60.5 91.5 87
LP784380 3.7 2900 180 7.8 43 80.5 54
LP784860 3.7 2400 180 7.8 48.5 60.5 44.5
LP801535 3.7 380 180 8 15 35 9
LP801740 3.7 520 180 8 17 40 12
LP802030 3.7 390 180 8.2 20.5 30.8 9
LP802535 3.7 700 180 8 25 35 23
LP803040 3.7 950 180 8 30.5 40.8 18
LP803045 3.7 1120 180 8 30.5 45.8 18
LP803048 3.7 950 180 8 30.5 48.5 22
LP803450 3.7 1500 8.2 34.5 50.5 30.5 33
LP803860 3.7 2000 180 8 38.5 60.5 40
LP804260 3.7 2600 180 8.4 42 60.5 43.5
LP804654 3.7 2200 180 8 46.5 54.5 40.5
LP805068 3.7 3000 180 8.2 50.5 68.5 58
LP824860 3.7 2800 180 8.6 48.5 60.5 49.5
LP851830 3.7 400 200 8.5 18 30 10
LP853048 3.7 1200 180 8.5 30.5 48.5 21.5
LP854275 3.7 3100 180 8.7 42 75.5 58
LP854759 3.7 2500 180 8.5 47 59 51
LP855085 3.7 4000 180 8 50 85.5 65
LP855686 3.7 5500 180 8.5 56.5 86 97
LP883450 3.7 1500 180 8.8 34.5 50.5 33
LP885570 3.7 3900 180 9 55 70 68.5
LP896585 3.7 5600 180 8.9 65 85.5 98
LP901530 3.7 350 180 9 15 30 9
LP902030 3.7 480 180 8.8 20.5 30.8 9.5
LP902030 3.7 500 180 9 20 30 11
LP903040 3.7 1000 180 9 30.5 40.8 15
LP903040 3.7 1100 180 9 30 40 18
LP903445 3.7 1450 180 9 34.5 45.8 26.5
LP904860 3.7 3000 180 9.2 48.5 60.5 53
LP905570 3.7 4000 180 9.2 55.5 70.5 73
LP953048 3.7 1400 180 9.5 30.5 48.5 27.5
LP103040 3.7 1200 180 10 30 40 18
LP103048 3.7 1500 180 10 30.5 48.8 30.5
LP103448 3.7 1500 180 10.2 34.5 48.8 33
LP103450 3.7 1800 180 10 34.5 50.5 31.5
LP103535 3.7 1100 180 9.6 35 35 18
LP104167 3.7 3000 180 10 41 67 53
LP105590 3.7 6000 180 10 50.5 90.8 110
LOW TEMPERATURE TYPE
Model Nominal Voltage (V) Nominal Capacity (mAh) Internal Imedance (mΩ) Thickness (mm) Width (mm) Height (mm) Weight (g)
LP603450 3.7 1200 180 6 34 50 19
LP103450 3.7 1800 180 10 34.5 50.5 31.5
Operation Temperature -40 to 55℃
HiGH TEMPERATURE TYPE
Model Nominal Voltage (V) Nominal Capacity (mAh) Internal Impedance (mΩ) Thickness (mm) Width (mm) Height (mm) Weight (g)
LP602030 3.7 250 150 6 20 30 8
LP103450 3.7 1800 180 10 34.5 50.5 31.5
Operation Temperature -20 to 70℃
Cylindrical TYPE
Model Nominal Voltage (V) Nominal Capacity (mAh) Internal Impedance (mΩ) Diameter Height (mm) Weight (g)
70350 3.7 90 100 7.2 37 4
70400 3.7 110 100 7.2 40 5
80130 3.7 55 100 8.2 13.8 4
80600 3.7 280 60 8.2 65 8
10440 3.7 330 60 10.5 44.5 8
13450 3.7 650 60 13.5 46 11
13700 3.7 100 80 13.5 75 5
16500 3.7 1150 60 16 50.5 32
17500 3.7 1550 60 17.5 50.5 35
HiGH RATE DISCHARGE TYPE
RC Plane Volt. mAh Continued Weight Dimension
Discharge (g) Thickness(mm) Width(mm) Length(mm)
RC Heli&
AirPlane Battery  		7.4 500 30C 33.0±1.0 10±0.2 31.0±0.5 55.0±0.5
11.1 500 30C 58.0±1.0 16±0.2 31.0±0.5 55.0±0.5
7.4 900 25C 50.0±1.0 16±0.2 31.0±0.5 55.0±0.5
11.1 900 25C 74.0±1.0 24±0.2 31.0±0.5 55.0±0.5
11.1 1300 25C 74.0±1.0 23±0.2 35.0±0.5 75.0±0.5
7.4 1800 25C 99.0±1.0 13±0.2 35.0±0.5 108.0±0.5
7.4 2200 25C 118±1.0 17±0.2 35.0±0.5 108.0±0.5
11.1 2200 25C 158±1.0 17±0.2 35.0±0.5 108.0±0.5
7.4 3000 25C 153±1.0 17±0.2 47.0±0.5 100.0±0.5
7.4 3300 25C 179±1.0 14±0.2 44.0±0.5 136.0±0.5
11.1 3300 25C 263±1.0 20±0.2 44.0±0.5 136.0±0.5
7.4 4000 25C 215±1.0 17±0.2 44.0±0.5 136.0±0.5
11.1 4000 25C 320±1.0 25±0.2 44.0±0.5 136.0±0.5
7.4 5000 25C 276±1.0 18±0.2 44.0±0.5 145.0±0.5
11.1 5000 25C 412±1.0 27±0.2 44.0±0.5 145.0±0.5

The above data is for reference only,Customized design is available.
